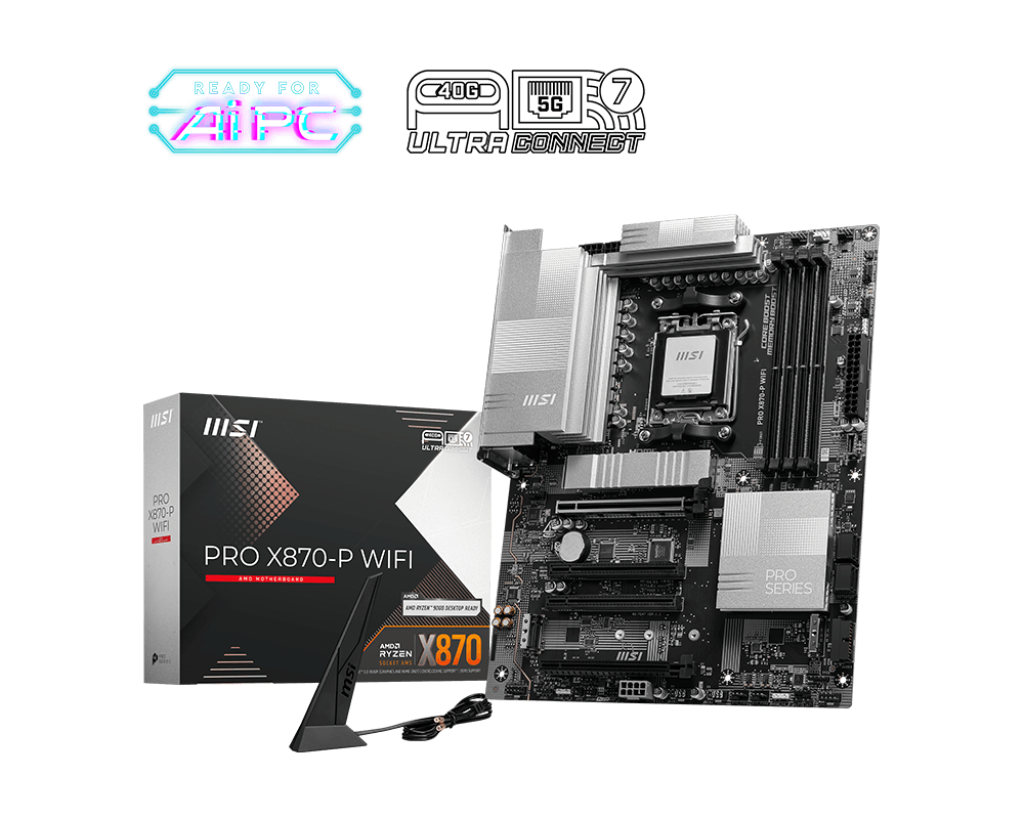

MSI PRO X870-P WIFI AM5 DDR5 MOTHERBOARD
,

MSI PRO X870-P WIFI AM5 DDR5 MOTHERBOARD

Availability:

Out of stock

₹22,040.00 ₹78,000.00

Out of stock

About this item

  • Ryzen 9000 READY, HIGH PERFORMANCE – The PRO X870-P WIFI (ATX) employs a 14+2+1 Duet Rail VRM with 80A SPS VRM for the AMD X870 chipset (AM5, Ryzen 9000 ready); Core Boost for enhanced CPU performance
  • INTEGRATED COOLING – Frozr AI cooling and an extended heatsink design; a dedicated pump-fan cooling header & with 2 oz copper thickened PCB
  • DDR5 MEMORY, PCIe 5.0 & 4.0 x16 SLOTS – 4 x DDR5 DIMM; Primary PCIe x16 slot supports PCIe 5.0 and includes Steel Armor, secondary PCIe x16 slots supports PCIe 4.0
  • TRIPLE M.2 CONNECTORS – Storage options include 1 x M.2 Gen5 x4 128Gbps slot, 1 x M.2 Gen4 x4 64Gbps and 1 x M.2 Gen4 x2 32Gbps slots
  • WI-FI 7 CONNECTIVITY – Network hardware includes Wi-Fi 7 module with Bluetooth 5.4 & 5Gbps LAN; Rear ports include 1x USB Type-C (20Gbps), HDMI 2.1, and 7.1 HD Audio with Audio Boost
SKU: ETK-Computer-Accesories-2706 Categories: , Brand:

Specifications:



Chipset AMD X870
CPU Supports AMD Ryzen„ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s
Ryzen„ 9000 Series Processors max. overclocking frequency:
€ 1DPC 1R Max speed up to 8200+ MT/s
€ 1DPC 2R Max speed up to 6400+ MT/s
€ 2DPC 1R Max speed up to 6400+ MT/s
€ 2DPC 2R Max speed up to 4800+ MT/sSupports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
€ The DIMM slots on this motherboard have double-sided latches.
€ Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product€™s Support page or visit https://www.msi.com/support/.
Onboard Graphics 1x HDMI„
Support HDMITM2.1, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
USB4port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E1 slot
€ Supports PCIe 5.0 x16 (For Ryzen„ 9000/ 7000 Series processors)
€ Supports PCIe 4.0 x8 (For Ryzen„ 8700/ 8600/ 8400 Series processors)
€ Supports PCIe 4.0 x4 (For Ryzen„ 8500/ 8300 Series processor)

* PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot.
Audio RealtekALC897
7.1-Channel High Definition Audio
Storage 3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6GM2_1 slot
€ Supports up to PCIe 5.0 x4 (For Ryzen„ 9000/ 7000 Series processors)
€ Supports up to PCIe 4.0 x4 (For Ryzen„ 8000 Series processors)

*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
1x USB 40Gbps Type C (Rear)
LAN Realtek8126VB 5G LAN
Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country€™s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor€™s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS

  1. Clear CMOS Button
  2. USB 5Gbps Type-A
  3. USB 2.0
  4. 5G LAN
  5. Wi-Fi / Bluetooth
  6. Audio connectors
  7. Flash BIOS Button
  8. HDMI„
  9. USB 40Gbps Type-C
  10. USB 10Gbps Type-A
  11. USB 20Gbps Type-C
OPERATING SYSTEM Support for Windows11 64-bit
BOX CONTENT
PCB Info ATX
243.84mmx304.8mm
Warranty 3 Years
