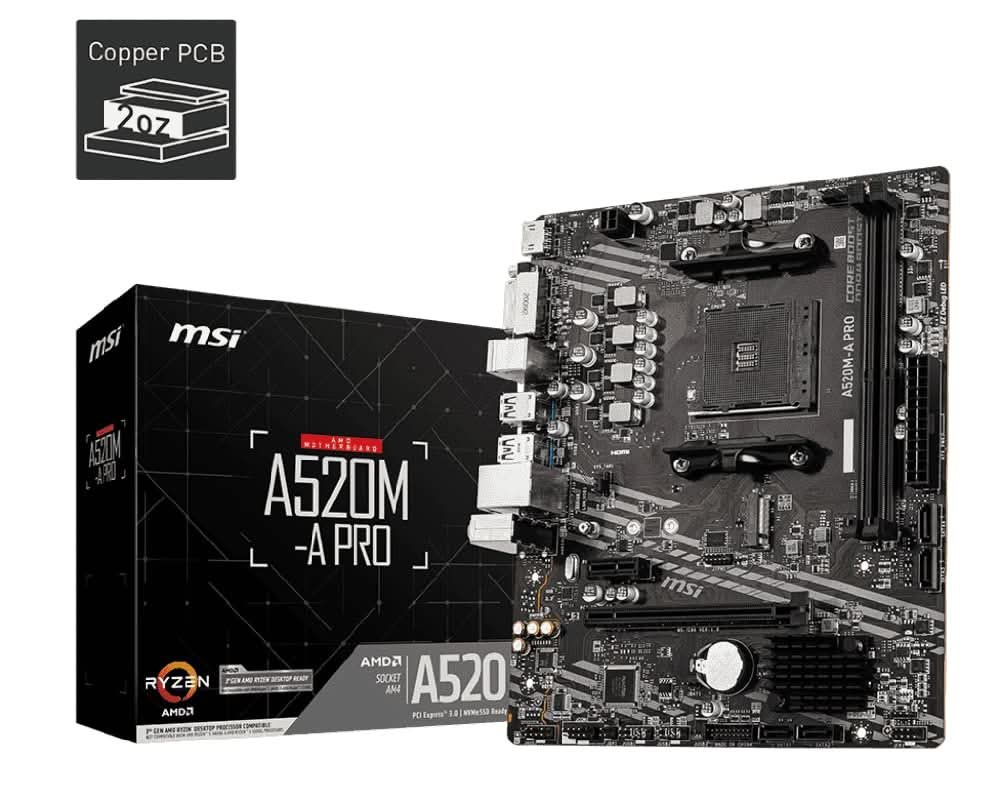

MSI PRO A520M-A AMD AM4 MOTHERBOARD
,

MSI PRO A520M-A AMD AM4 MOTHERBOARD

Availability:

10 in stock

₹5,273.00 ₹8,199.00

10 in stock

CPU Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzenô4000 G-Series Desktop Processors
Chipset AMD A520 Chipset
Memory 2x DDR4 memory slots, support up to 64GB
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
1DPC 1R max speed 4600 MHz
1DPC 2R max speed 3866 MHz
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Expansion Slot 1x PCIe 3.0 x1 slot
1x PCIe x16 slot
1. The supported specification depends on installed processor.
Onboard Graphics 1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz
1x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
Maximum shared memory of 16 GB
1. Available for the processor with integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.
Storage AMD A520 Chipset
4x SATA 6Gb/s ports
1x M.2 slot (Key M) (from AMD Processor)
Supports PCIe 3.0
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
1. The supported specification depends on installed processor.
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB AMD A520 Chipset
2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio RealtekÆ ALC892/ALC897 Codec
7.1-Channel High Definition Audio
LAN 1x RealtekÆ RTL8111H Gigabit LAN controller
Internal connectors 1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1xTPM module connector
1x Clear CMOS jumper
Back panel ports 1. LAN port
2. HDMI
3. DVI-D
4. Keyboard / Mouse
5. USB 3.2 Gen 1 5Gbps Type-A
6. USB 3.2 Gen 1 5Gbps Type-A
7. USB 2.0 Ports
8. Audio Connectors
Dimensions Micro-ATX Form Factor
9.3 in. x 7.9 in. (23.6 cm x 20 cm)
MOUNTING 8 mounting holes
Warranty 3 Years

 *Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.

SKU: ETK-Computer-Accessories-1408 Categories: , Brand:
CPU Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzenô4000 G-Series Desktop Processors
Chipset AMD A520 Chipset
Memory 2x DDR4 memory slots, support up to 64GB
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
1DPC 1R max speed 4600 MHz
1DPC 2R max speed 3866 MHz
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Expansion Slot 1x PCIe 3.0 x1 slot
1x PCIe x16 slot
1. The supported specification depends on installed processor.
Onboard Graphics 1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz
1x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
Maximum shared memory of 16 GB
1. Available for the processor with integrated graphics.
2. Graphics specifications may vary depending on the CPU installed.
Storage AMD A520 Chipset
4x SATA 6Gb/s ports
1x M.2 slot (Key M) (from AMD Processor)
Supports PCIe 3.0
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
1. The supported specification depends on installed processor.
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB AMD A520 Chipset
2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio RealtekÆ ALC892/ALC897 Codec
7.1-Channel High Definition Audio
LAN 1x RealtekÆ RTL8111H Gigabit LAN controller
Internal connectors 1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1xTPM module connector
1x Clear CMOS jumper
Back panel ports 1. LAN port
2. HDMI
3. DVI-D
4. Keyboard / Mouse
5. USB 3.2 Gen 1 5Gbps Type-A
6. USB 3.2 Gen 1 5Gbps Type-A
7. USB 2.0 Ports
8. Audio Connectors
Dimensions Micro-ATX Form Factor
9.3 in. x 7.9 in. (23.6 cm x 20 cm)
MOUNTING 8 mounting holes
Warranty 3 Years

 *Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
