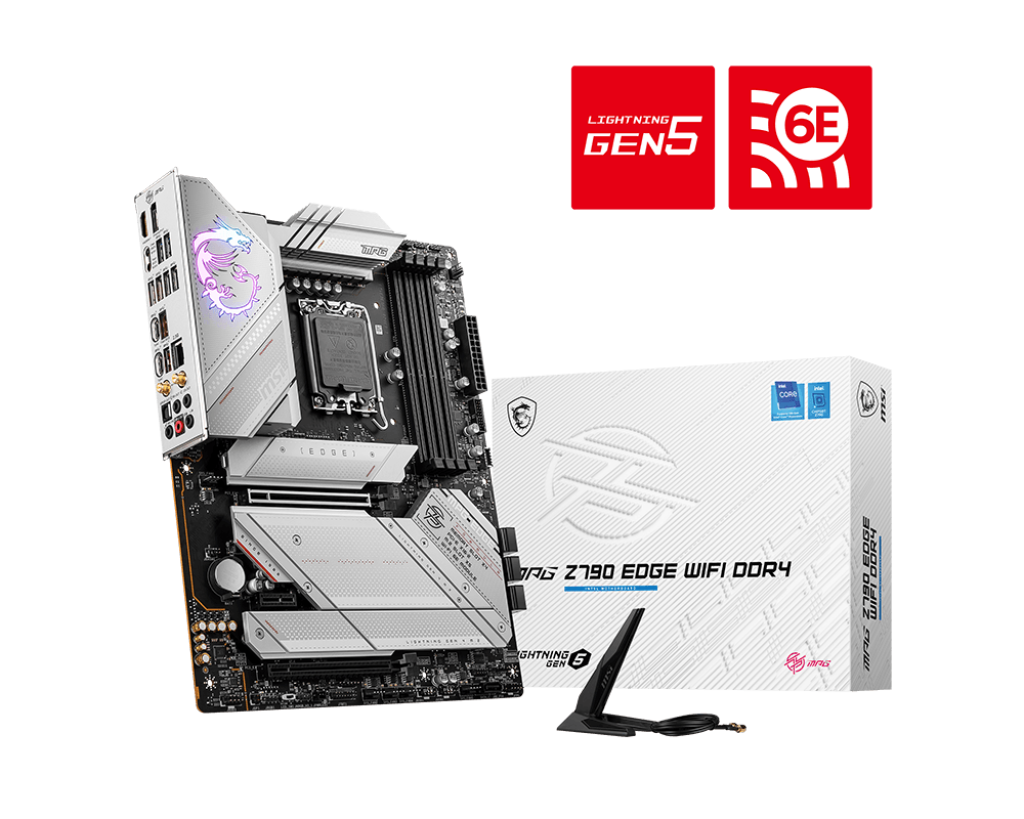

MSI MPG Z790 EDGE WIFI DDR4 INTEL LGA1700 MOTHERBOARD
,

MSI MPG Z790 EDGE WIFI DDR4 INTEL LGA1700 MOTHERBOARD

Availability:

10 in stock

₹32,965.00 ₹62,599.00

10 in stock

Specifications



Chipset INTEL Z790
CPU SUPPORT Supports 12th/13th Gen IntelĠ Coreī Processors, PentiumĠ Gold and CeleronĠ Processors
LGA 1700
Memory 4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5333/5200/5066/5000/4800/4600/4533/4400/4266/4000/3866/3733/3600/3466/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133(By JEDCE & POR)
Max. overclocking frequency:
ƒ¯ 1DPC 1R Max speed up to 5333+ MHz
ƒ¯ 1DPC 2R Max speed up to 4800+ MHz
ƒ¯ 2DPC 1R Max speed up to 4400+ MHz
ƒ¯ 2DPC 2R Max speed up to 4000+ MHz
Supports IntelĠ XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics 1x HDMIƒ´
1x DisplayPort
Support HDMIƒ´ 2.1, maximum resolution of 4K 60Hz
Support DP 1.4, maximum resolution of 8K 60Hz
EXPANSION SLOT 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Storage 5x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_5 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
7x SATA 6G port
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB 4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN IntelĠ 2.5Gbps LAN
WIRELESS / BLUETOOTH IntelĠ Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz(160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports BluetoothĠ 5.3, FIPS, FISMA
Audio RealtekĠ ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
Internal I/O 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
LED FEATURE 4x EZ Debug LED
1x EZ LED Control switch
BACK PANEL PORTS Display Port
USB 3.2 Gen 1 5 Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMIƒ´
Clear CMOS / Flash BIOS
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)
USB 3.2 Gen 2×2 20Gbps (Type-C)
Optical S/PDIF Out
OPERATING SYSTEM Support for WindowsĠ 11 64-bit, WindowsĠ 10 64-bit
PCB Dimension ATX
243.84mmx304.8mm
Warranty 3 Years

*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice.
