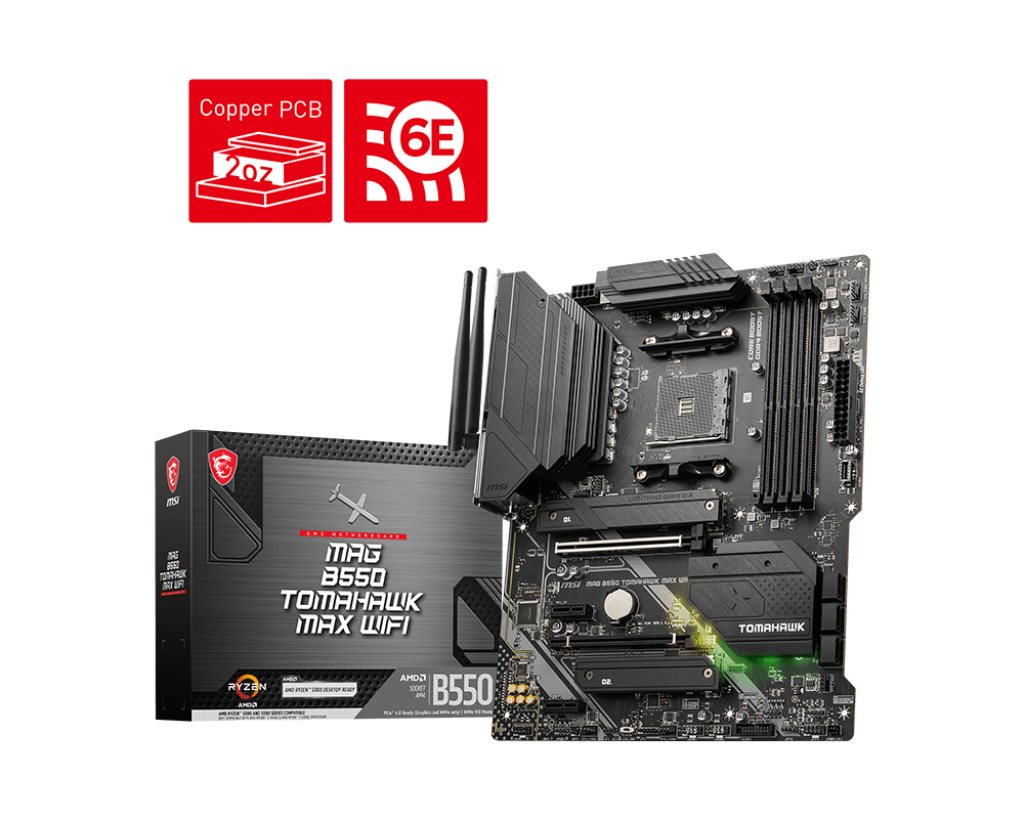

MSI MAG B550 TOMAHAWK MAX WIFI AMD AM4 MOTHERBOARD
Availability:
10 in stock
₹16,798.00 ₹34,499.00
10 in stock
Specifications
| Model | MAG B550 TOMAHAWK MAX WIFI |
| Processor | Supports AMD Ryzenƒ´ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors |
| Chipset | AMD B550 Chipset |
| Memory | 4 x DDR4 memory slots, support up to 128GB |
| Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC | |
| Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE | |
| 1DPC 1R max speed 5100 MHZ | |
| 1DPC 2R max speed 3866 MHZ | |
| 2DPC 1R max speed 4000 MHZ | |
| 2DPC 2R max speed 3600 MHZ | |
| Dual channel memory architecture | |
| Supports non-ECC UDIMM memory | |
| Supports ECC UDIMM memory | |
| Supports un-buffered memory | |
| Expansion Slot | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) |
| 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed | |
| 2x PCIe 3.0 x1 slots | |
| Multi-GPU | Supports AMD CrossFireƒ´ Technology |
| Onboard Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096—Š2160 @60Hz |
| Support HDCP 1.4 & 2.3 | |
| 1x DisplayPort, supports a maximum resolution of 4096—Š2160 @60Hz 1 | |
| Maximum shared memory of 16 GB | |
| Storage | AMD B550 Chipset |
| 6x SATA 6Gb/s ports | |
| 2x M.2 slots (Key M) | |
| M2_1 slot (from AMD Processor) | |
| Supports PCIe 4.0/ 3.0 x4 | |
| Supports SATA 6Gb/s | |
| Supports 2242/ 2260/ 2280/ 22110 storage devices | |
| M2_2 slot (from AMD B550 chipset) | |
| Supports PCIe 3.0—Š4 | |
| Supports 2242/ 2260/ 2280 storage devices | |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
| USB | AMD B550 Chipset |
| 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) | |
| 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) | |
| AMD Processor | |
| 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) | |
| 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel | |
| LAN | 1x RealtekĠ RTL8125B 2.5Gbps LAN controller |
| Audio | RealtekĠ ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| Supports S/PDIF output | |
| Wireless Lan & Bluetooth | AMD Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports BluetoothĠ 5.2, FIPS, FISMA | |
| Internal connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 6x SATA 6Gb/s connectors | |
| 2x M.2 slots (M-Key) | |
| 1x USB 3.2 Gen 1 5Gbps Type-C port | |
| 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) | |
| 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) | |
| 1x 4-pin CPU fan connector | |
| 1x 4-pin water-pump fan connector | |
| 6x 4-pin system fan connectors | |
| 1x Front panel audio connector | |
| 2x System panel connectors | |
| 1x Chassis Intrusion connector | |
| 2x 4-pin RGB LED connectors | |
| 2x 3-pin RAINBOW LED connectors | |
| 1x TPM module connector | |
| 1x Clear CMOS jumper | |
| Back panel ports | Keyboard / Mouse |
| DisplayPort 1.4 | |
| 2.5G LAN Port | |
| USB 3.2 Gen 2 10Gbps Type-A | |
| Wi-Fi / Bluetooth Antenna | |
| Audio Connectors | |
| Flash BIOS Button | |
| USB 2.0 Port | |
| HDMI 2.1 Port | |
| USB 3.2 Gen 1 5Gbps Type-A | |
| USB 3.2 Gen 2 10Gbps Type-C | |
| Optical S/PDIF OUT | |
| Dimensions | ATX Form Factor |
| 12 in. x 9.6 in. (30.5 cm x 24.4 cm) | |
| Mounting | 9 mounting holes |
| Operating System | Support for WindowsĠ 11 64-bit, WindowsĠ 10 64-bit |
| Warranty | 3 Years |
*Note: The actual colors may be different from the color displayed here. Features, Price and Specifications are subject to change without notice. Warranty: 3 years
